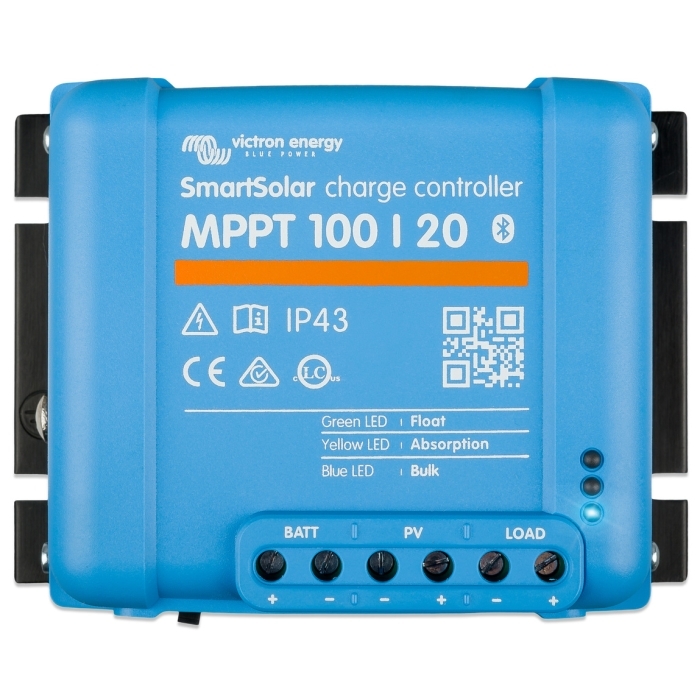

48 volt SmartSolar MPPT 100/20 | Victron SCC110020160R
Special Price
$89.25
Regular Price
$105.00
SKU
Brand: Victron EnergyQty In Stock: 24
VICTRON-SCC110020160R
The SmartSolar Charge Controller MPPT 100/20-48 volt supports 12/24/48 volt battery systems with a 20 amp charge current and 1160 watt nominal PV power at 48 volt. It features 98% peak efficiency, automatic load disconnect, and multi-stage adaptive charging.
48 volt SmartSolar MPPT 100/20 | Victron SCC110020160R is available to buy in increments of 1
| Warehouse | Available |
| Florida | 0 |
| Michigan | 0 |
| Ohio | 0 |
| Tennessee | 24 |
| Wisconsin | 0 |
- Battery voltage (auto select): 12/24/48 volt
- Rated charge current: 20 amp
- Nominal PV power (12 V): 290 watt
- Nominal PV power (24 V): 580 watt
- Nominal PV power (48 V): 1160 watt
- Max. PV short circuit current: 20 amp
- Automatic load disconnect: Yes
- Max. PV open circuit voltage: 100 volt
- Peak efficiency: 98%
- Self-consumption (load on): 26 / 20 / 19 mA
- Self-consumption (load off): 10 / 8 / 7 mA
- Charge voltage 'absorption': 14.4 volt / 28.8 volt / 57.6 volt (adjustable)
- Charge voltage 'float': 13.8 volt / 27.6 volt / 55.2 volt (adjustable)
- Charge algorithm: Multi-stage adaptive
- Temperature compensation: -16 mV / °C or -32 mV / °C
- Max. continuous load current: 20 amp
- Low voltage load disconnect: 11.1 volt / 22.2 volt / 44.4 volt or 11.8 volt / 23.6 volt / 47.2 volt (or Battery Life algorithm)
- Low voltage load reconnect: 13.1 volt / 26.2 volt / 52.4 volt or 14 volt / 28 volt / 56 volt (or Battery Life algorithm)
- Protection: Output short circuit / Over temperature
- Operating temperature: -30 to +60 °C (full rated output up to 40 °C)
- Humidity: 95%, non-condensing
- Data communication port: VE.Direct
- Enclosure color: Blue (RAL 5012)
- Power terminals: 6 mm² / AWG10
- Protection category: IP43 (electronic components), IP22 (connection area)
- Weight: 0.65 kg
- Dimensions (H x W x D): 100 x 131 x 60 mm
- Standards: EN/IEC 62109-1, UL 1741, CSA C22.2
- Stored trends data: Battery voltage, current, temperature, load output current, PV voltage, and PV current
- Number of days trends data is stored: 46 days
| Manufacturer Part No. | SCC110020160R |
|---|---|
| Brand | Victron Energy |
| Shipping/Dimensional Weight | 0.740000 |
| Actual Weight | 0 |
| Availability | In Stock |
| Special Price | $89.25 |
| Ships free when order qualifies | Yes |
| Hazmat Fee | No |
