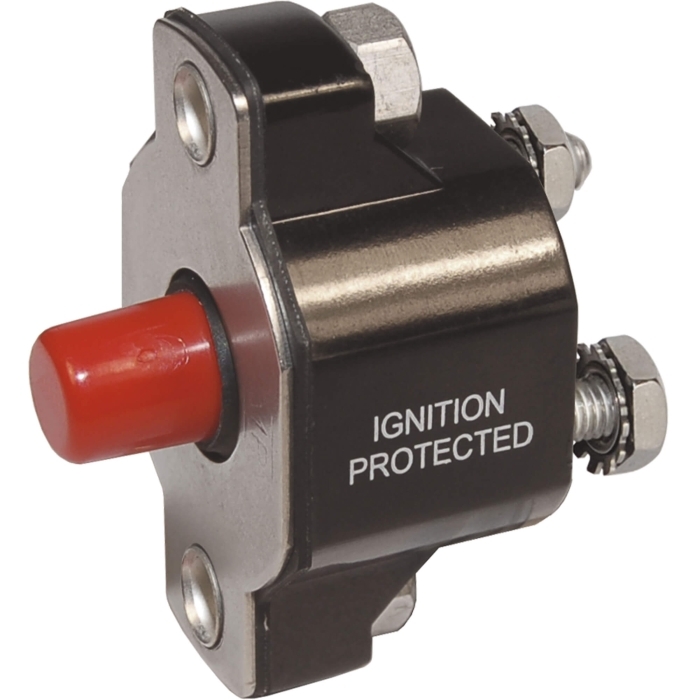

50 Amp Medium Duty Push Button Circuit Breaker | Blue Sea 2142
Special Price
$51.02
Regular Price
$67.65
SKU
Brand: Blue Sea SystemsQty In Stock: 49
BLUE-2142
Reset-only 50A circuit breaker, found on many marine engines, is used for DC & AC circuit protection applications that do not require switching.
50 Amp Medium Duty Push Button Circuit Breaker | Blue Sea 2142 is available to buy in increments of 1
| Warehouse | Available |
| Florida | 0 |
| Michigan | 27 |
| Ohio | 5 |
| Tennessee | 10 |
| Wisconsin | 7 |
- Blue Sea push button circuit breaker
- Reset-only circuit breaker with push-to-reset operation
- (2) #10-32 stainless steel terminal studs
- Captive star lockwashers meet requirements for anti-rotation and help eliminate the loss of small attaching hardware
- 50 amp circuit breaker can be used for main, branch, or 24-hour circuit protection
- Trip Free feature cannot be held ON during fault current condition
- Compact design
- Thermal trip type
- 5000A interrupt capacity @ 32 volts DC
- 3000A interrupt capacity @ 120 volts AC
- 32 volts DC maximum operating voltage
- 120 volts AC maximum operating voltage
- #8-32 mounting screw thread size
- 1.575 in. mounting screw bolt hole centers
- Meets SAE J1428, SAE J553, UL 1077 regulatory specifications
- Meets UL 1500 external ignition protection requirements
- Replaces Chrysler 4142032
- Replaces Crusader R303006B
- Replaces Pleasurecraft Marine R153006B
- Replaces Indmar 80-5011
- Replaces Mercury 88-11178A01
- Replaces Marine Power 485006
- Replaces Volvo Penta 3854164
| Manufacturer Part No. | 2142 |
|---|---|
| Shipping/Dimensional Weight | 2.000000 |
| Actual Weight | 0.16 |
| Brand | Blue Sea Systems |
| Availability | In Stock |
| Special Price | $51.02 |
| Ships free when order qualifies | Yes |
| Hazmat Fee | No |
