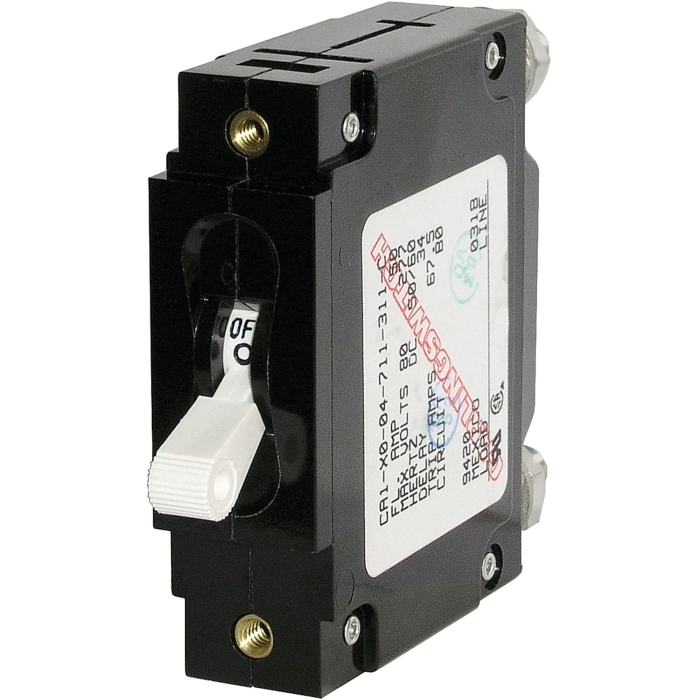

50 Amp C-Series Toggle Circuit Breaker
Special Price
$58.83
Regular Price
$76.87
SKU
Brand: Blue Sea SystemsQty In Stock: 18
BLUE-7244
White handle single pole circuit breaker with 1/4-20 stud terminal connections is used for DC or 120/240 volt AC circuit protection.
50 Amp C-Series Toggle Circuit Breaker is available to buy in increments of 1
| Warehouse | Available |
| Florida | 0 |
| Michigan | 0 |
| Ohio | 0 |
| Tennessee | 18 |
| Wisconsin | 0 |
- C-Series circuit breaker
- 50 amps AC/DC rating
- Single pole
- White toggle handle
- Combines switching and circuit protection into a single device
- Magnetic hydraulic trip-free design cannot be held ON during fault current condition
- Provides overcurrent protection for many DC applications including inverters, bow thrusters, and windlasses
- Suitable for main circuit protection of DC electrical systems or 120/240 volt AC circuit protection
- 80 volts DC maximum voltage
- 240 volts AC maximum voltage
- #6-32 mounting screws included
- 1/4-20 tin plated brass terminal studs
- 0.630 in. diameter panel hole size for toggle switch
- 10,000 amps interrupt capacity @ 80 volts DC
- 5000 amps interrupt capacity @ 125 volts AC
- 5000 amps interrupt capacity @ 240 volts AC
- Rated for 10,000 switching cycles @ rated amperage and voltage
- .75 in. width x 2.5 in. height x 2.475 in. depth
- Meets ABYC standards
- UL 1077 recognized
| Manufacturer Part No. | 7244 |
|---|---|
| Shipping/Dimensional Weight | 2.000000 |
| Actual Weight | 0.36 |
| Brand | Blue Sea Systems |
| Availability | In Stock |
| Special Price | $58.83 |
| Ships free when order qualifies | Yes |
| Hazmat Fee | No |
| Notice | WARNING - This product can expose you chemicals which are known to the State of California to cause cancer and birth defects or reproductive harm. For more information go to www.P65warnings.ca.gov. |
