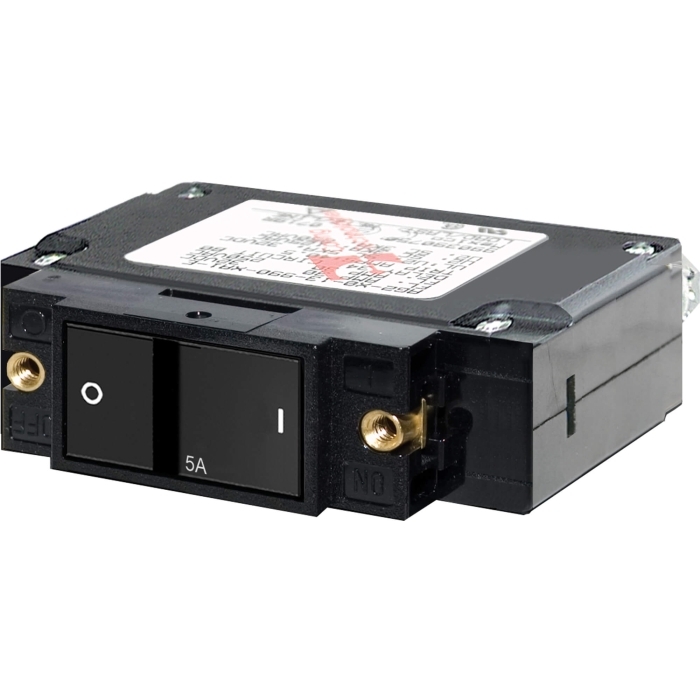

C-Series Flat Rocker Circuit Breaker - Single Pole 5A

Images

Description

• Circuit Breaker C1 Flat Rocker 5A
• Rocker actuator is flush in the ON position eliminating the risk of accidental switching
• Color actuator indicates OFF position
• Provides overcurrent protection for inverters bow thrusters and windlasses
• Combines switching and circuit protection into a single device
• Trip Free cannot be held closed after trip
• Ignition protected safe for installation aboard gasoline powered boats
• Magnetic hydraulic circuit breaker type
• Operating temperature range -40 degrees C to +85 degrees C
• Tin plated brass terminal stud 1/4 in. 20 maximum torque 35 in.-lb.
• Rated switch cycles 10 000 @ rated amperage and voltage
• Phenolic case material
• Stainless steel mounting screw #6-32 recommended torque 6-8 in.-lb.
