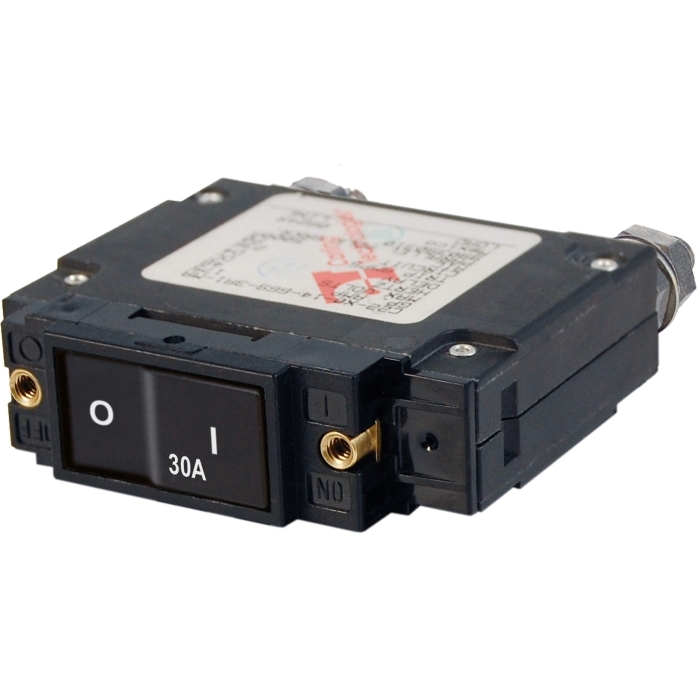

C-Series Flat Rocker Circuit Breaker - Single Pole 30A
Special Price
$49.49
Regular Price
$65.52
SKU
Brand: Blue Sea SystemsQty In Stock: 0
BLUE-7545
C-Series Flat Rocker Circuit Breaker - Single Pole 30A
C-Series Flat Rocker Circuit Breaker - Single Pole 30A is available to buy in increments of 1
Warehouse | Available |
Florida | 0 |
Michigan | 0 |
Ohio | 0 |
Tennessee | 0 |
Wisconsin | 0 |
- Circuit Breaker C1 Flat Rocker 30A
- Rocker actuator is flush in the ON position eliminating the risk of accidental switching
- Color actuator indicates OFF position
- Provides overcurrent protection for inverters bow thrusters and windlasses
- Combines switching and circuit protection into a single device
- Trip Free cannot be held closed after trip
- Ignition protected?safe for installation aboard gasoline powered boats
- Magnetic hydraulic circuit breaker type
- Operating temperature range -40 degrees C to +85 degrees C
- Tin plated brass terminal stud 1/4 in. 20 maximum torque 35 in.-lb.
- Rated switch cycles 10 000 @ rated amperage and voltage
- Phenolic case material
- Stainless steel mounting screw #6-32 recommended torque 6-8 in.-lb.
Manufacturer Part No. | 7545 |
---|---|
Shipping/Dimensional Weight | 0.280000 |
Actual Weight | 0.28 |
Brand | Blue Sea Systems |
Availability | Out of Stock |
Special Price | $49.49 |
Ships free when order qualifies | Yes |
Hazmat Fee | No |
Notice | WARNING - This product can expose you chemicals which are known to the State of California to cause cancer and birth defects or reproductive harm. For more information go to www.P65warnings.ca.gov. |
