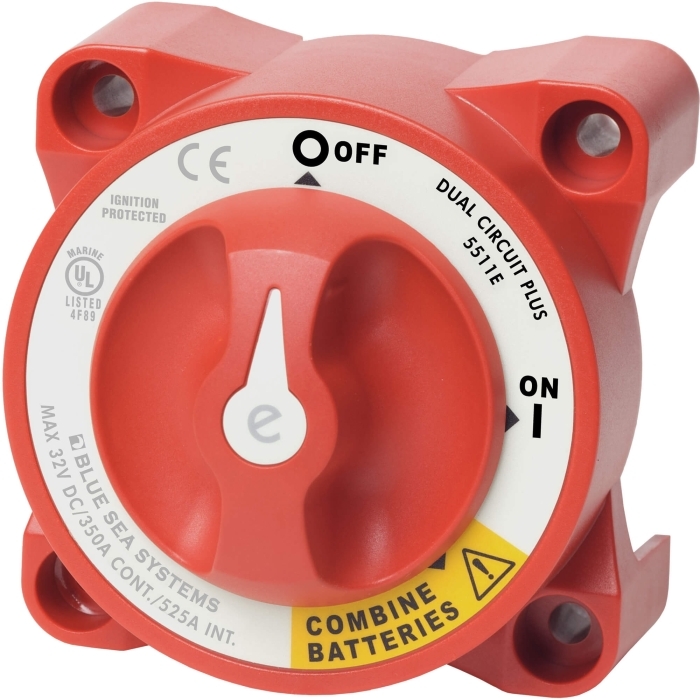

E-Series Dual Circuit Plus Battery Switch
Special Price
$59.10
Regular Price
$87.98
SKU
Brand: Blue Sea Systems
BLUE-5511E
- Blue Sea dual circuit plus battery switch
- e Series
- Simultaneously switches two isolated battery banks or combines all banks to loads
- Make-before-break contact design allows switching without power interruption
- Case design allows surface or rear panel mounting
- Molded in durable reinforced polycarbonate
- Tin-plated copper studs accept 3/8''-16 (M10) ring terminals
- 7/8 in. long stud accepts multiple cable terminals
- Accepts up to 4/0 AWG battery cables
- Constructed of non-corrosive marine grade metals
- 350 amp DC continuous rating
- 525 amp DC intermittent rating
- 700 amp DC 30 second cranking rating per circuit
- 32 volts DC maximum operating voltage
- Accepts 14 in. (M6) mounting screws – sold separately
- 3.85 in. diameter x 3.097 in. depth
- Designed to fit most standard Perko and Guest battery switch hole patterns
- IP 66 rated against dust ingression and water intrusion
- ISO 8846 marine
- Meets UL 1500 and SAE J1171 marine ignition protection requirements
- Meets UL 1107 standards for electric power switches
- CE certified
- Replaces Blue Sea Systems P/N 5511E200
| Manufacturer Part No. | 5511e |
|---|---|
| Shipping/Dimensional Weight | 3.000000 |
| Actual Weight | 1.300000000000 |
| Brand | Blue Sea Systems |
| Availability | In Stock |
| Special Price | $59.10 |
| Ships free when order qualifies | Yes |
| Hazmat Fee | No |
