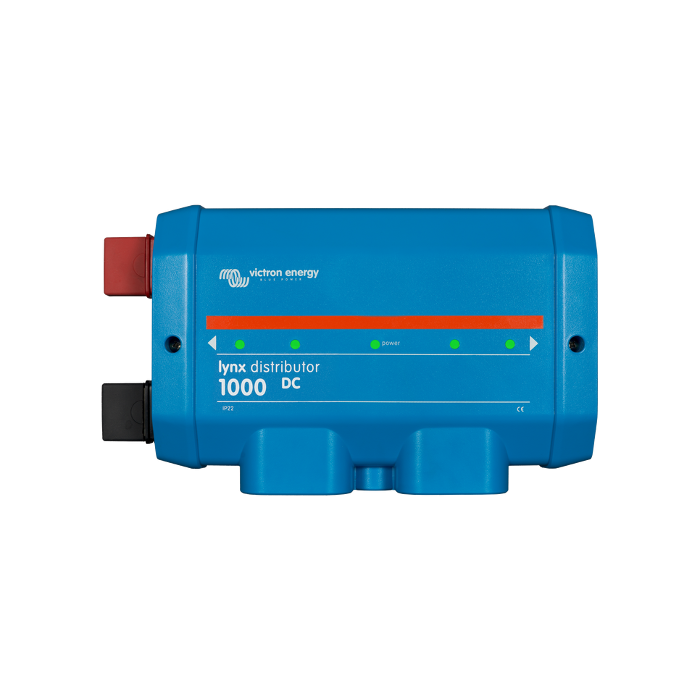

Lynx Distributor | Victron Energy LYN060102000
The Lynx distributor is a modular DC busbar, with locations for four DC fuses. It will monitor the status of each fuse, and indicate its condition with a LED on the front. This is a component of the modular Lynx DC distribution system.
| Warehouse | Available |
| Florida | 0 |
| Michigan | 0 |
| Ohio | 0 |
| Tennessee | 5 |
| Wisconsin | 0 |
This DC busbar distributor forms the control center for Lynx marine distributor systems, transferring power for reliable operation. Each end has four connection points; the negative end also contains a ground, while the positive end is fuse-protected with LED lights to show whether they are working correctly. By utilizing the Lynx Smart BMS (battery management system), you can remotely monitor the connections using the VictronConnect smartphone app.
The Victron Energy Lynx M8 Distributor supports 1,000 amps of current while requiring just 100mA to operate, putting less strain on your electrical array. Email or call us with questions about where and how to use Lynx marine distributors.
- Houses four DC fuses with LEDs to indicate their condition.
- Rated for up to 1000A with reverse polarity protection.
- Supports 12V, 24V or 48V systems.
- The enclosure is made of durable ABS plastic.
- Includes a 16-inch RJ10 connector cable.
- Operating Temperature: -40 to 140 degrees Fahrenheit
- Dimensions: 11.4” W x 6.7” H x 3.2” L
| Manufacturer Part No. | LYN060102000 |
|---|---|
| Brand | Victron Energy |
| Shipping/Dimensional Weight | 2.271000 |
| Actual Weight | 0 |
| Availability | In Stock |
| Special Price | $201.45 |
| Ships free when order qualifies | Yes |
| Hazmat Fee | No |
