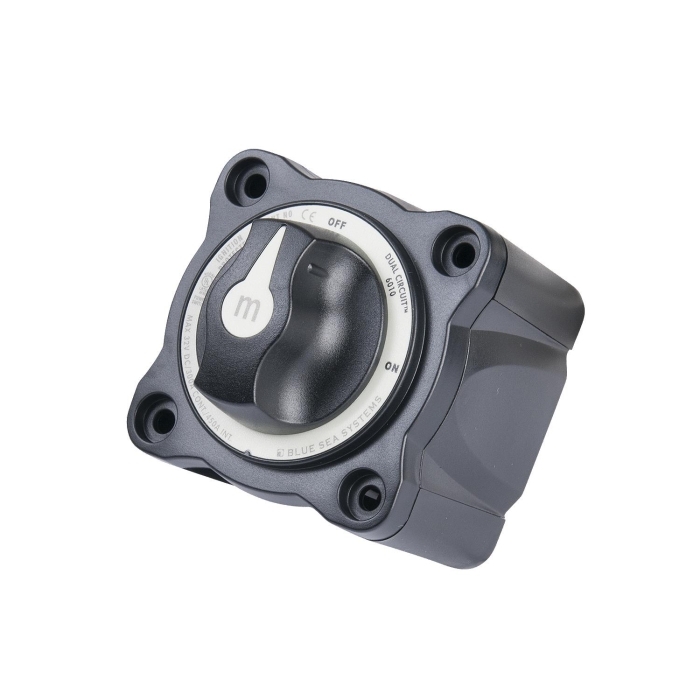

M-Series Black Dual Circuit Battery Switch | Blue Sea 6010200

Special Price $65.58 MSRP: $87.02
SKU
BLUE-6010200
Brand: Blue Sea SystemsQty In Stock: 6

Black mini dual circuit switch simultaneously switches two isolated battery banks or circuits for outboard, small gasoline, or small diesel engine applications.

M-Series Black Dual Circuit Battery Switch | Blue Sea 6010200 is available to buy in increments of 1
WarehouseAvailable
Florida 6
Michigan 0
Ohio 0
Tennessee 0
Wisconsin 0
  • Black M-Series Battery Switch, Dual Circuit™
  • Simultaneously switches two isolated battery banks
  • Ignition protected - safe for installation aboard gasoline powered boats
  • Case design allows surface, front panel, or rear panel mounting
  • Isolating cover with snap-on sections protects rear contacts
  • Cranking rating: 10 sec. 1,000 A
  • Cranking rating: 1 min. 650 A
  • Intermittent rating: 5 min. 450 A
  • Continuous rating 300 A
  • Maximum voltage rating 32 Volts DC
  • Terminal stud size 3/8 in.-16 (M10)
  • Terminal stud torque 120 in-lbs. (13.56 N-m) max.
  • Mounting holes accept #10 screw
  • Cable size to meet ratings 4/0 AWG (95mm sq.)
  • Cable clearance for 4/0 AWG cables 1.12 in. (28.4mm)
  • Weight lbs. (kg) 0.80 (0.36)
