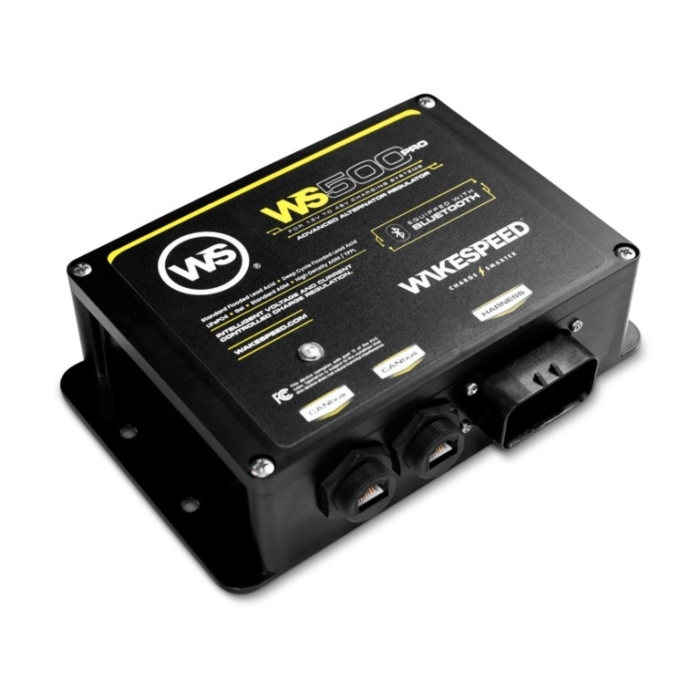

Pro Bluetooth Advanced Alternator Regulator | Wakespeed WS500PRO
$649.00
SKU
Brand: WakespeedQty In Stock: 1
WAKESPEED-WS500PRO
An Advanced Alternator Regulator with Bluetooth connectivity, allowing precise, customizable charging for 12, 24, and 48 volt systems through current, voltage, and temperature controls. With the Wakespeed Mobile App, users can wirelessly configure, monitor, and update their system for improved charging efficiency and seamless integration, keeping the WS500 Pro at the cutting edge of power management.
Pro Bluetooth Advanced Alternator Regulator | Wakespeed WS500PRO is available to buy in increments of 1
| Warehouse | Available |
| Florida | 0 |
| Michigan | 0 |
| Ohio | 0 |
| Tennessee | 1 |
| Wisconsin | 0 |
- Terminal Connectors: Ampseal 23-pin waterproof, Ruggedized RJ45 (CAN)
- USB Connector: USB Type B
- Warranty: 2-Year Limited Warranty
- 12-volt: Auto Detected
- 24-volt: Auto Detected
- 48-volt: Auto Detected
- Other fully customizable from 12 to 48/52 volt, no hardware changes necessary
- A-Type (N) / B-Type (P): Select compatible P- or N-type wiring harness to match alternator polarity
- Charge controller capable of driving alternator output based on voltage, current, and temperature goals
- Voltage: Via sense wires included in wiring harness
- Current: Via amp shunt, calibrated to support most shunts, 500 amp / 50mV is default
- Temperature: Via alternator and battery temperature sensors, real-time variable charging output based on ambient alternator and battery temperature
- Battery Temperature and/or current may be supplied via CAN when used with suitable BMS
- VIA BUILT-IN SWITCH: Basic Charge profile by battery type: Battery capacity, Alternator output range, Battery ID
- VIA WAKESPEED APPLICATION: Fully customized configuration for battery, alternator, and system via Bluetooth and Wakespeed Mobile App
- EIGHT PRESET PROGRAMS (Selectable via Dip Switch for Battery Type)
- Flexible charging protocol integrating system voltage, battery acceptance current, battery temperature, alternator temperature, and/or time duration
- Charge controller can be configured to safely charge batteries outside of nominal temperature ranges by dynamically limiting charge current
- Via USB Port – 100+ advanced adjustments accessible via Wakespeed Mobile App in Expert Mode
- Via Mobile App – Access to monitoring, programming, and diagnostic functions via Bluetooth® and Wakespeed Mobile App
- CAN (Control Area Network): J1939-based CAN provides access for system integration and monitoring
- Supports several industry standard CAN cabling systems, including RJ45/CAT5, M12-5 (NMEA, Device-Net), RV-C cabling systems
- Enhanced CAN protocol support includes RV-C, NMEA2000, Victron VEreg, SMA, LUX, and several proprietary CAN protocols with selected BMS manufacturers
- Field Output Control Default Values: Large Alternator Mode (10%) Small Alternator Mode (75%) Halt Power Mode (50%)
- Advanced Configurable: Maximum field bandwidth adjustable from 0% to 100% in one percent increments
- Charge controller firmware updatable via built-in USB connector or wirelessly through Bluetooth and Wakespeed Mobile App
- Onboard LED: Operational and troubleshooting/fault data via built-in USB connector
- Remote Display: via CAN to remote displays using commonly-accepted marine and RV protocols
- Replaces Wakespeed WS500-PRO
| Manufacturer Part No. | WS500PRO |
|---|---|
| Brand | Wakespeed |
| Shipping/Dimensional Weight | 0.999999 |
| Actual Weight | 0 |
| Availability | In Stock |
| Special Price | $649.00 |
| Ships free when order qualifies | No |
| Hazmat Fee | No |
