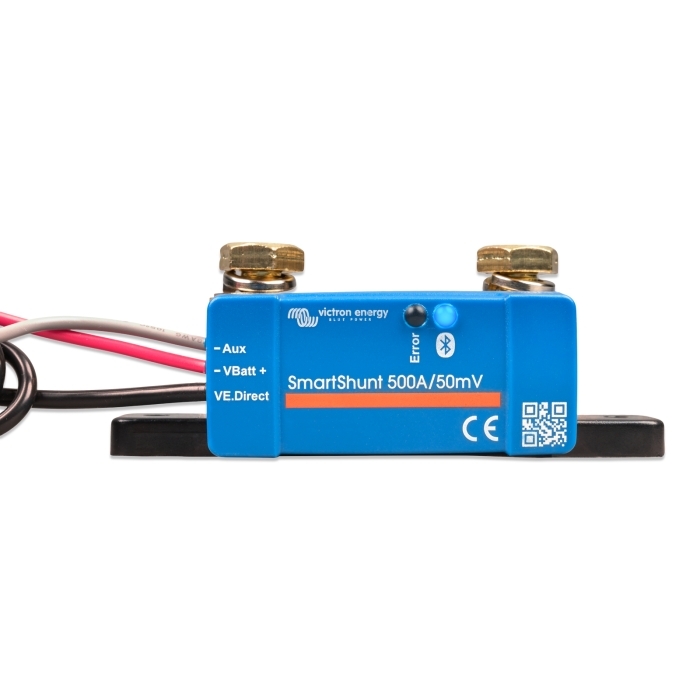

SmartShunt 500A/50mV IP65 | Victron SHU065150050

Supply voltage range: 6.5 - 70 VDC

Current draw: < 1 mA

Auxiliary battery input voltage range: 6.5 - 70 VDC

Battery capacity: 1 - 9999 Ah

Operating temperature range: -40 to +50 °C (-40 to 120 °F)

Measures second battery voltage, temperature, or midpoint: Yes

Temperature measurement range: -20 to +50 °C

Current resolution: ± 0.01 amp

Voltage resolution: ± 0.01 volt

Amp hours resolution: ± 0.1 Ah

State of charge (0 – 100 %) resolution: ± 0.1 %

Time to go resolution: ± 1 minute

Temperature accuracy (if temperature sensor connected): ± 1 °C/°F (0 – 50 °C or 30 – 120 °F)

Current measurement accuracy: ± 0.4 %

Offset: Less than 10 / 10 / 20 / 40 mA

Voltage measurement accuracy: ± 0.3 %

500A: 1.81 x 4.72 x 2.13 inches

Shunt connection bolts: M10

Protection category: IP65

Safety: EN 60335-1

Emission / Immunity: EN-IEC 61000-6-1, EN-IEC 61000-6-2, EN-IEC 61000-6-3

Automotive: EN 50498

Cables: Two 1.5 m cables with 1 amp fuse (for ‘+’ connection and starter battery or midpoint connection)

VE.Direct cable: 1.5 m with VE.Direct socket (VE.Direct cable required for GX device connection)

Bluetooth signal range: 10-15 meters

Stored data: Battery voltage, current, state of charge, aux input (battery temperature, midpoint deviation, or starter battery voltage)

Trend storage duration: 46 days
