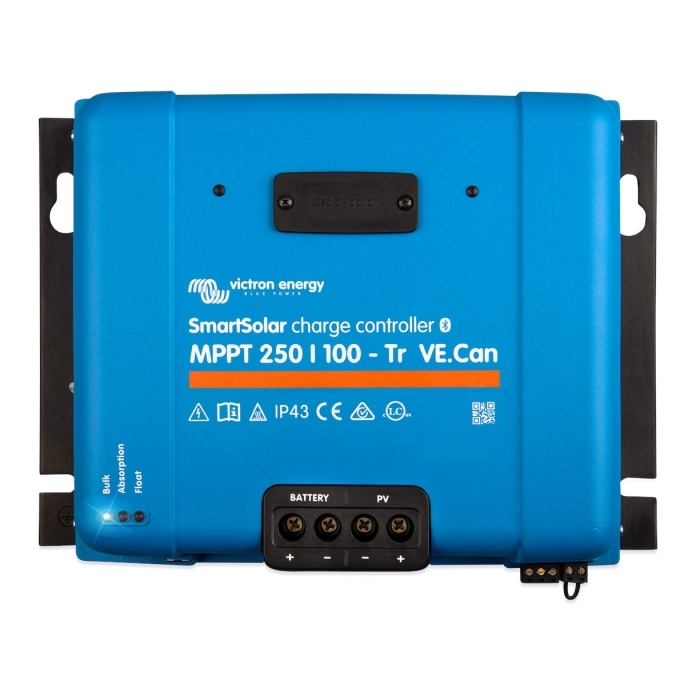

SmartSolar MPPT 250/100-Tr VE.Can | Victron SCC125110412
Special Price
$612.85
Regular Price
$721.00
SKU
Brand: Victron EnergyQty In Stock: 1
VICTRON-SCC125110412
The SmartSolar 250/100 controller maximizes solar energy collection to quickly and fully charge batteries while supporting long-term health, and recharge batteries with voltages as low as 0 volts if the cells aren’t permanently damaged.
SmartSolar MPPT 250/100-Tr VE.Can | Victron SCC125110412 is available to buy in increments of 1
| Warehouse | Available |
| Florida | 0 |
| Michigan | 0 |
| Ohio | 0 |
| Tennessee | 1 |
| Wisconsin | 0 |
- Battery voltage: 12/24/48 volt Auto Select (36 volt with manual selection)
- Rated charge current: 100 amp
- Nominal PV power, 12 volt: 1450 watt
- Nominal PV power, 24 volt: 2900 watt
- Nominal PV power, 36 volt: 4350 watt
- Nominal PV power, 48 volt: 5800 watt
- Max. PV short circuit current: 70 amp (max 30 amp per MC4 connection)
- Maximum PV open circuit voltage: 250 volt absolute maximum coldest conditions, 245 volt start-up and operating maximum
- Maximum efficiency: 99 %
- Self-consumption: Less than 35 mA @ 12 volt / 20 mA @ 48 volt
- Charge voltage 'absorption': Default setting: 14.4/28.8/43.2/57.6 volt (adjustable with rotary switch, display, VE.Direct or Bluetooth)
- Charge voltage 'float': Default setting: 13.8/27.6/41.4/55.2 volt (adjustable: rotary switch, display, VE.Direct or Bluetooth)
- Charge voltage 'equalization': Default setting: 16.2/32.4/48.6/64.8 volt (adjustable: rotary switch, display, VE.Direct or Bluetooth)
- Charge algorithm: Multi-stage adaptive (eight pre-programmed algorithms or user-defined algorithm)
- Temperature compensation: -16 mV/°C to -32 mV/°C per battery
- Protection: PV reverse polarity / Output short circuit / Over temperature
- Operating temperature: -30 to +60°C (-22 to +140°F) (full rated output up to 40°C or 104°F)
- Humidity: 95 %, non-condensing
- Maximum altitude: 5000 m (16,404 feet) (full rated output up to 2000 m or 6562 feet)
- Environmental condition: Indoor, unconditioned
- Pollution degree: PD3
- Data communication port: VE.Can, VE.Direct and Bluetooth
- Remote on-off: Yes (2 pole connector)
- Programmable relay: DPST AC rating: 240 VAC / 4 amp, DC rating: 4 amp up to 35 VDC, 1 amp up to 60 VDC
- Parallel operation: Yes, parallel synchronized operation with VE.Can (max 25 units) or Bluetooth (max 10 units)
- Enclosure color: Blue (RAL 5012)
- PV terminals: 35 mm² / AWG2 (Tr models), Three pairs of MC4 connectors (MC4 models)
- Battery terminals: 35 mm² / AWG2
- Protection category: IP43 (electronic components), IP22 (connection area)
- Weight: 4.5 kg (9.9 pounds)
- Dimensions (h x w x d): Tr models: 216 x 295 x 103 mm (8.5 x 11.6 x 4.1 inches), MC4 models: 265 x 295 x 103 mm (10.4 x 11.6 x 4.1 inches)
- Safety standards: EN/IEC 62109-1, UL 1741, CSA C22.2
- Stored trends data: Battery voltage, current and temperature, as well as load output current, PV voltage, and PV current
Number of days trends data is stored: 46
| Manufacturer Part No. | SCC125110412 |
|---|---|
| Brand | Victron Energy |
| Shipping/Dimensional Weight | 9.923000 |
| Actual Weight | 0 |
| Availability | In Stock |
| Special Price | $612.85 |
| Ships free when order qualifies | Yes |
| Hazmat Fee | No |
