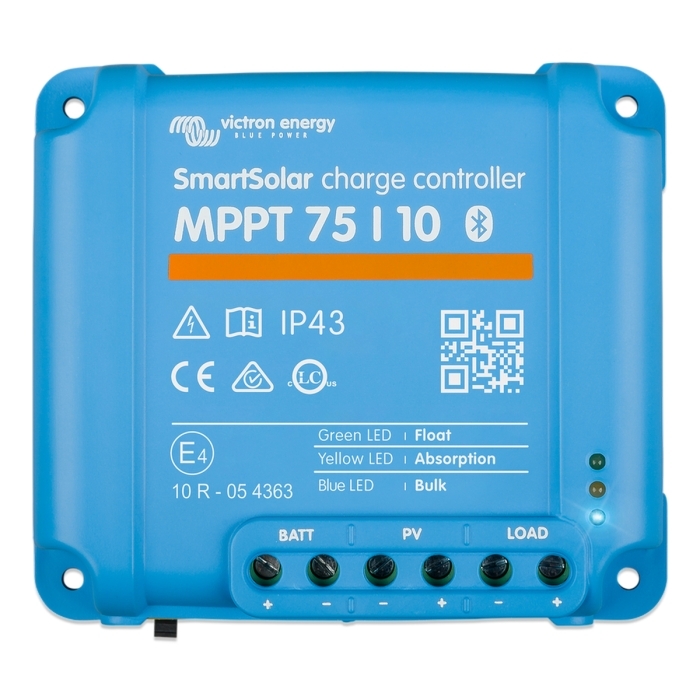

SmartSolar MPPT 75/10 Retail | Victron SCC075010060R

Images

Description

#html-body [data-pb-style=P3TVJMW]{justify-content:flex-start;display:flex;flex-direction:column;background-position:left top;background-size:cover;background-repeat:no-repeat;background-attachment:scroll}

• Battery Voltage 12/24V
• Rated charge current 10A
• Nominal PV power 12V 145W
• Nominal PV power 24V 290W
• Max. PV short circuit current 13A
• Automatic load disconnect Yes
• Max. PV open circuit voltage 75V
• Peak efficiency 98%
• Self-consumption – load on 12V: 19 mA 24V: 16 mA
• Self-consumption – load off 12V: 10 mA 24V: 8 mA
• Charge voltage 'absorption' 14,4V / 28,8V (adjustable)
• Charge voltage 'float' 13,8V / 27,6V (adjustable)
• Charge algorithm multi-stage adaptive
• Temperature compensation -16 mV / °C resp. -32 mV / °C
• Max. continuous load current 15A
• Low voltage load disconnect 11,1V / 22,2V / 44,4V or 11,8V / 23,6V / 47,2V or Battery Life algorithm
• Low voltage load reconnect 13,1V / 26,2V / 52,4V or 14V / 28V / 56V or Battery Life algorithm
• Protection Output short circuit / Over temperature
• Operating temperature -30 to +60°C (full rated output up to 40°C)
• Humidity 95%, non-condensing
• Data communication port VE.Direct (see the data communication white paper on our website)

Price
