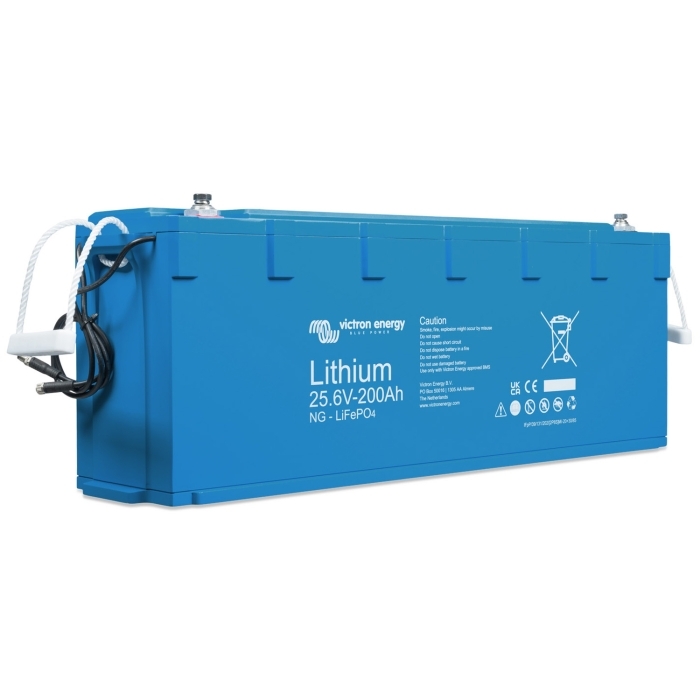

LiFePO4 Battery 25,6V/200Ah NG VICTRON-BAT524120620

Model: LFP25.6/200 (25.6 V 200 Ah)

Nominal voltage: 25.6 V

Nominal capacity @ 77 °F: 200 Ah

Nominal energy @ 77 °F: 5,120 Wh (5.12 kWh)

Capacity loss per 100 cycles @ 77 °F (100 % DoD): < 1 %

Energy loss per 100 cycles @ 77 °F (100 % DoD): < 1 %

Round-trip efficiency: 92 %

Cycle life (capacity ≥ 80 % of nominal):

• 2,500 cycles @ 80 % DoD

• 3,000 cycles @ 70 % DoD

• 5,000 cycles @ 50 % DoD

Maximum continuous discharge current: 200 A (1C)

Maximum pulse discharge current (10 s): 400 A (2C)

End of discharge voltage: 22.4 V

Internal resistance: 1 milliohm

Charge voltage range: 28.0 – 28.8 V

Float voltage: 27.0 V

Maximum continuous charge current: 200 A (1C)

Maximum pulse charge current (10 s): 400 A (2C)

Compatible BMS: Lynx Smart BMS NG 500 A / 1000 A (M10 busbars, sold separately)

Communication: High-speed digital M8 cable (19.7 in) with optional 1 – 5 m (3.3 – 16.4 ft) extensions

Bluetooth: Integrated in BMS

Maximum batteries per BMS: 50 (up to 384 kWh total)

Firmware updates: Automatic via BMS

Repairable design: Yes (removable cover with screws)

Operating temperature:

• Discharge −4 °F to 122 °F

• Charge 41 °F to 122 °F

Storage temperature: −49 °F to 158 °F

Humidity (non-condensing): Max 95 %

Protection class: IP65

Mounting: Strap or included brackets; can be mounted on its side

Self-discharge rate: ≤ 3 % per month @ 77 °F

Power connection: M8 threaded inserts with bolts

Dimensions (h × w × d): 9.25 × 25.5 × 6.38 in (235 × 648 × 162 mm)

Weight (approx.): 81.6 lb (37 kg)

Certifications: UL1973, UL9540A, IEC62619
